Platform KERN KXP 6V20LM
Available from stock

Platform: weighing plate of stainless steel, painted steel base, silicone-coated aluminium load cell with protection against dust and water splashes IP65

List price
280,00 €

Weighing capacity

3 kg; 6 kg

Readability

200 mg

Verification value (e)

1 g; 2 g

Minimum load (Min)

20 g; 40 g

Net weight

3,8 kg

Dimension weighing platform (W×D×H)

300×240×85 mm

Standard
Factory
Description
  • Stainless steel-weighing plate
  • Painted steel base, extremely rigid, wing design

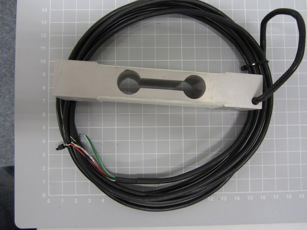

  • 1 load cell, aluminium, silicone-coated, IP65, OIML-R60-approved, class III, 3000 e
  • Level indicator and levelling feet for precise levelling of the scale, fitted as standard, to give the most accurate weighing result
Specifications

Article codes, product groups & Status information

Model article-code
:
KXP 6V20LM
Model-Serie
:
KXP
Assortment
:
KERN
Product Type
:
Industrial scales
Product group
:
Platforms
Product usage type
:
Spare part;Main article
EAN code (Model)
:
4045761151840
Successor Model
:
KBP 6V20LM
Planned start date
:
2014-1HJ
Customs tariff number
:
90318080
Model Status
:
Discontinued

Technical data - Verification

Verification Value E
:
1 g; 2 g
Minimum Load Min
:
20 g; 40 g
Verification by KERN possible
:
Yes

Technical data - Primary

Weighing capacity
:
3 kg; 6 kg
Readability
:
200 mg
Verification value (e)
:
1 g; 2 g
Minimum load (Min)
:
20 g; 40 g
Net weight
:
3,8 kg
Dimension weighing platform (W×D×H)
:
300×240×85 mm

Technical data - Measuring system

Readability
:
200 mg
load cell connection
:
4-guide

Responsible Persons

Product manager
:
Thomas Buchholz

Prices & Discounts

List price
:
280,00 €
Warranty
:
24 mon

Technical data - Construction

IP protection load cell
:
IP65
Material weighing plate
:
Stainless steel
Revolving screw feet
:
Yes
Weighing surface (d)
:
300×240 mm
Dimensions of weighing plate (W×D)
:
300×240 mm
Dimensions weighing platform
:
300×240×85 mm

Technical data - Packing & Shipping

Packaging component - by weight - cardboard
:
1 kg
Packaging component - by weight - plastics
:
1 kg
Packaging component - by weight - styrofoam
:
1.450 g
Delivery time
:
1 d
Dimensions packaging (W×D×H)
:
395×350×230 mm
Gross weight
:
7 kg
Net weight
:
3,8 kg
Shipping method
:
Parcel service
