Platform Scale With Stainless Steel Display Device KERN IXS 30K-3
Available from stock

High-resolution platform scale with stainless steel display device with IP68 rating and XL display

List price
710,00 €

Weighing capacity

30 kg

Readability

0,001 kg

Minimum piece weight

10 g

Net weight

11,125 kg

Platform size

400×300 mm

Indicator cable length

3 m

Dimension weighing platform (W×D×H)

400×300×89 mm

Standard
Option
Factory
Description
  • Tough industry standard suitable for use in harsh industrial applications
  • Platform: weighing plate of stainless steel, painted steel base, silicone-coated aluminium load cell with protection against dust and water splashes IP65, Substruction in wing design, extremely resistant to bending
  • Superior display size: digit height 55 mm, bright with high contrast for easy reading of weighing results, even in poor lighting conditions
  • Display device: stainless steel, protection against dust and water splashesIP68, integrated power supply

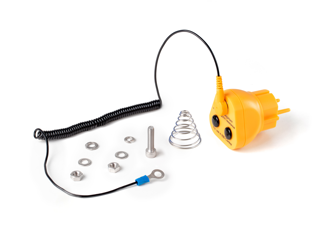

  • ESD drain to protect against electrostatic discharge e.g. for electrostatically-charged weighing objects or people who work with the scale

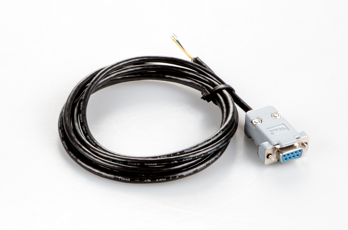

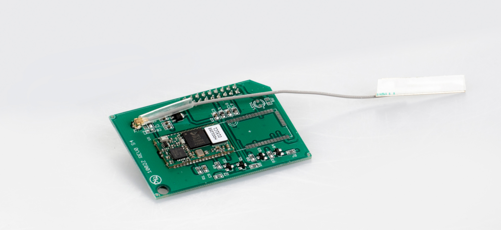

  • Thanks to interfaces such as RS-232, RS-485 and Bluetooth (optional) the scale can easily be connected to existing networks and facilitates the data exchange between the scale and printer
Specifications

Article codes, product groups & Status information

Model article-code
:
IXS 30K-3
Model-Serie
:
IXS
Assortment
:
KERN
Product Type
:
Industrial scales
Product group
:
Platform scales
Product usage type
:
Main article
EAN code (Model)
:
4045761206236
Predecessor Model
:
IXS 30K-3-2.017a
Successor Model
:
IXC 30K-3
Planned start date
:
2018-1HJ
Customs tariff number
:
84238129
Model Status
:
Discontinued

Technical data - Display

Display height
:
55 mm
Backlight
:
Yes

Technical data - Measuring system

Calibration method
:
Adjusting with external weight
Linearity
:
± 0,003 kg
Readability
:
0,001 kg
Recommended adjusting weight
:
30 kg (M1)
Repeatability
:
0,001 kg
Resolution
:
30.000
Stabilisation time under laboratory conditions
:
2 s
Tare range
:
-30 kg
Warm up time
:
120 min
Weighing system
:
Strain gauge
Weighing units
:
Kg
load cell connection
:
6-Leiter

Technical data - Primary

Weighing capacity
:
30 kg
Readability
:
0,001 kg
Minimum piece weight
:
10 g
Net weight
:
11,125 kg
Platform size
:
400×300 mm
Indicator cable length
:
3 m
Dimension weighing platform (W×D×H)
:
400×300×89 mm

Technical data - Power supply

Mains adapter/adapter included
:
EURO
Charging time
:
12 h
Input Voltage
:
220 V - 240 V AC, 50 Hz
Operating time (Backlight off)
:
80 h
Rechargeable battery
:
Rchrg. battery optional (factory)

Technical data - Environmental conditions

Maximum humidity
:
80 %
Maximum operating temperature
:
40 °C
Minimum ambient temperature
:
-10 °C
Minimum humidity
:
0 %

Technical data - Counting data

Counting resolution
:
30.000
Mininum piece weight at piece counting (Laboratory)
:
1 g
Minimum piece weight
:
10 g

Technical data - Verification

Verification approval conforming to 2014/31/EU
:
Yes

Technical data - Construction

IP protection indicator
:
IP68
IP protection platform
:
No IP protection
IP protection load cell
:
IP65
Dimensions display casing (W×D×H)
:
232×150×80 mm
Material weighing plate
:
Stainless steel
Material Platform construction
:
Stainless steel, lacquered

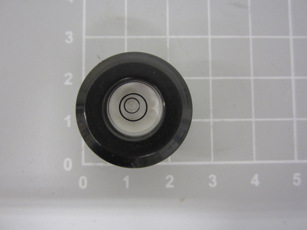

Bubble Level
:
Yes
Revolving screw feet
:
Yes
Weighing surface (d)
:
400×300 mm
Dimensions of weighing plate (W×D)
:
400×300 mm
Indicator cable length
:
3 m

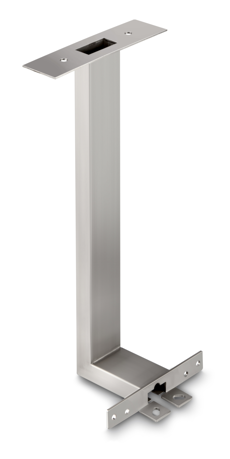

Wall mount
:
Yes

Technical data - Packing & Shipping

Packaging component - by weight - cardboard
:
1 kg
Packaging component - by weight - styrofoam
:
1 kg
Delivery time
:
1 d
Dimensions packaging (W×D×H)
:
500×635×218 mm
Gross weight
:
14 kg
Net weight
:
12 kg
Shipping method
:
Parcel service

Responsible Persons

Product manager
:
Thomas Buchholz

Prices & Discounts

List price
:
710,00 €
Warranty
:
36 mon

Optional Services

DAkkS Calibration
:
963-128
